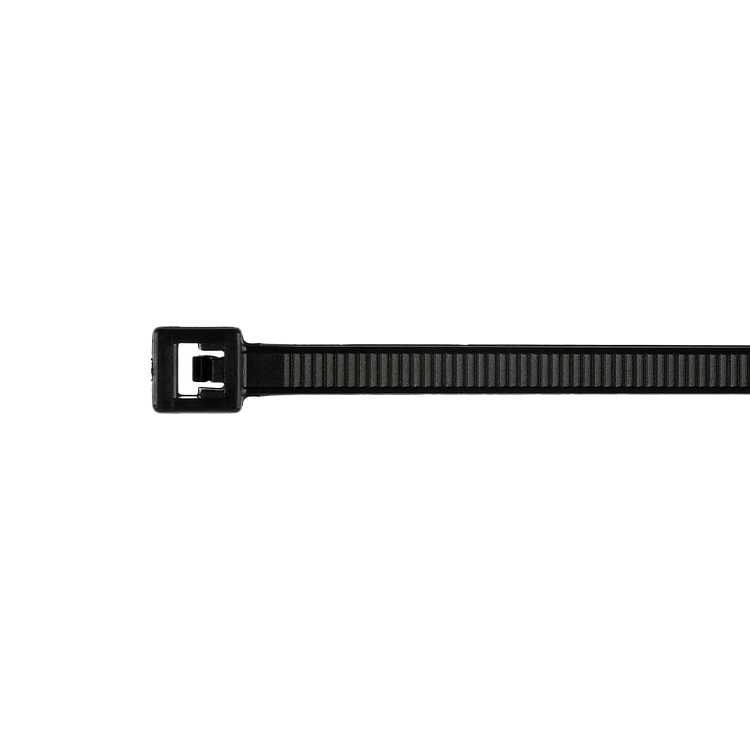

8" Slim Line Cable Ties

Our Slim Line Ties feature an overall strap length of 8" (203.3mm). Their small heads and narrow cross sections make them a good choice for use in limited space.

Also available with an overall strap length of 6"(152.4mm) and 15"(381mm).

Attribute
Specifications
Bundle Diameter0.06" - 2.13" (1.6mm - 53.9mm)
Width0.1" (2.5mm)
Thickness0.044" (1.1mm)
Minimum Tensile Loop Strength18 lbf. (80 N)
Strap Length8.0" (203.2mm)
Quantity Per Case*5M

*M = 1000

Part #Environmental RequirementsColorOperating TemperatureQuantity Per Bag*
10325-0General Purpose
Natural-40 to 85°C / -40 to 185°F
1M
10326-0Heat Stabilized
Black-40 to 105°C / -40 to 221°F
1M
10327-0Weather/UV Resistant
Black
-40 to 80°C / -40 to 176°F
1M
10328-0General Purpose
Natural
-20 to 85°C / -68 to 185°F
100
10330-0Weather/UV Resistant
Black
-40 to 80°C / -40 to 176°F
100
Part #Military SpecificationsPanduit Cross ReferenceThomas and Betts Cross Reference
10325-0MS-3367-4-9PLT2M-MTY232M
10326-0 PLT2M-M0
10327-0MS-3367-4-0PLTM-MOTY232MX
10328-0MS-3367-4-9PLT2M-CTY5232M
10330-0MS-3367-4-0PLT2M-COTY5232MX
