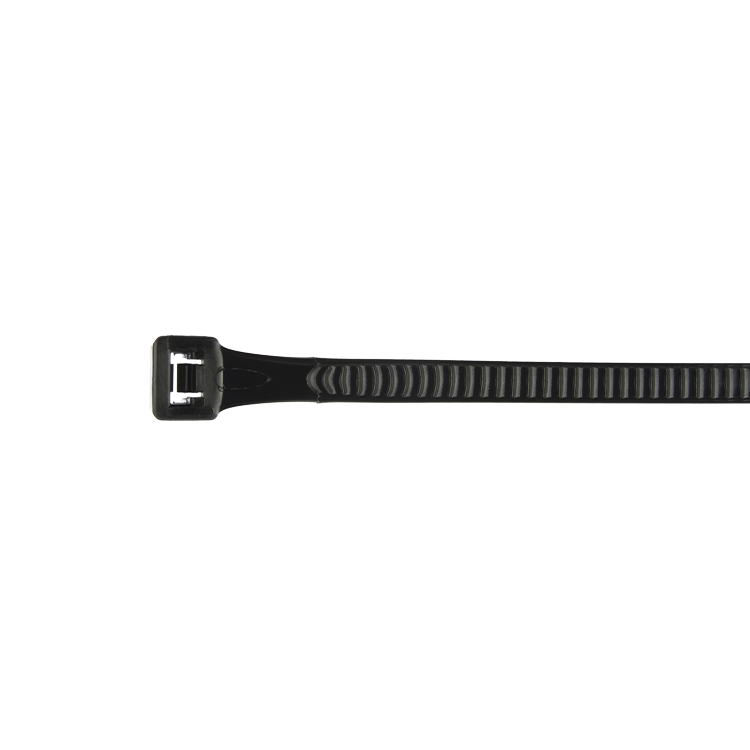

7.5" Super Bar-Lok® Ties

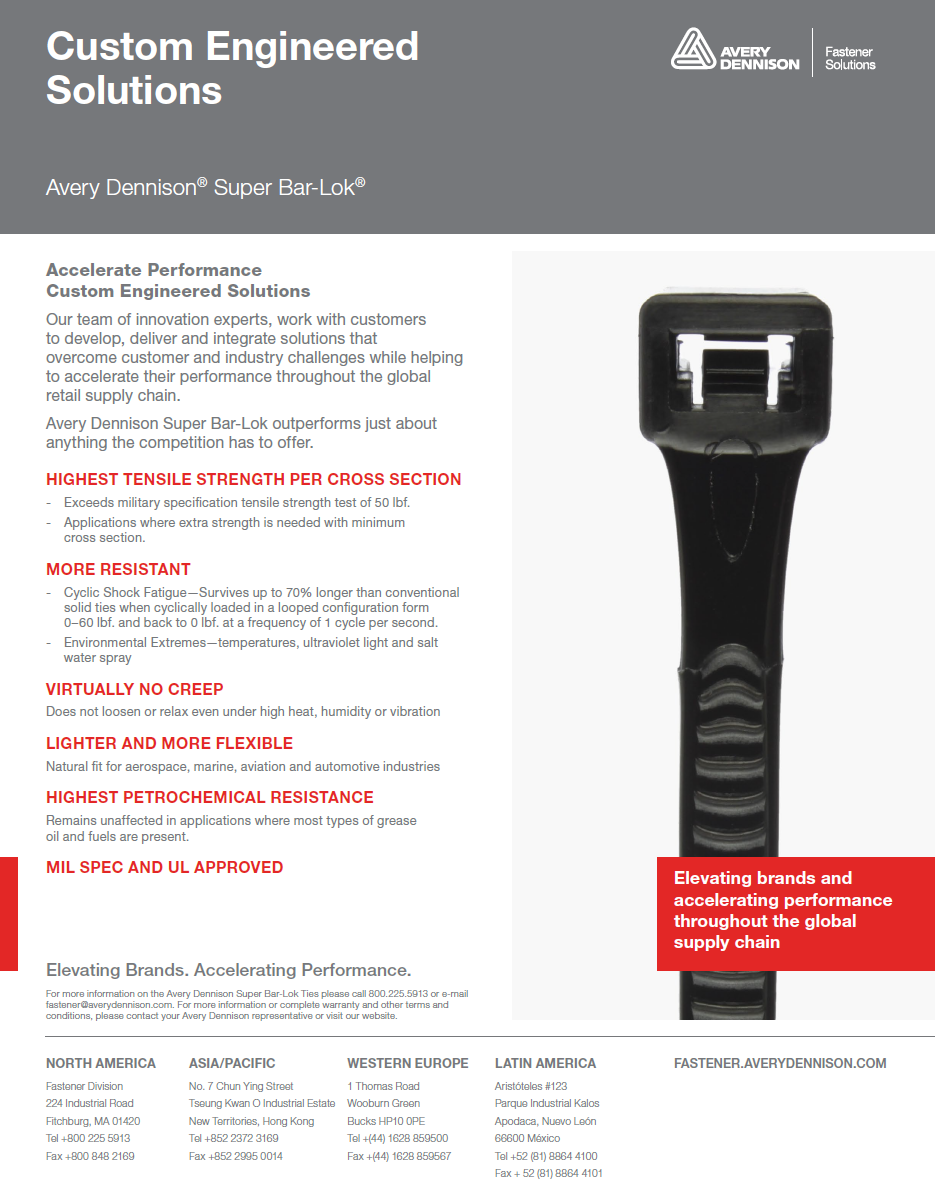

Our Super Bar-Lok Ties™ feature an overall strap length of 7.5" (190.5mm) and exceed military specification tensile strength test of 50 lbf, making these ties ideal in applications where extra strength is needed with minimum cross section. These ties also survive up to 70% longer than conventional solid ties when cyclically loaded in a looped configuration from 0 to 60 lbs, and back to 0 lbs at a frequency of 1 cycle per second. Super Bar-Lok Ties™ do not loosen or relax even under high heat, humidity, or vibration and remains unaffected in applications where grease, oil, and fuels are present. Their light and flexible design is a natural fit for aerospace, marine, aviation, and automotive industries. They are also resistant to extreme temperatures, ultraviolet light, and saltwater spray.

Super Bar-Lok Ties™ are Mil Spec and UL approved. Also available with an overall strap length of 15"(381mm).

Attribute
Specifications
Bundle Diameter0.06"- 1.75" (1.6mm - 44.5 mm)
Width0.195" (5mm)
Thickness0.03" (0.8mm)
Minimum Tensile Loop Strength50 lbf. (222 N)

Strap Length7.5" (190.5mm)
Quantity Per Bag*1M
Quantity Per Case*5M

*M = 1000

Part #Environmental RequirementsColorOperating Temperature
10001-0General Purpose
Natural-40 to 85°C / -40 to 185°F
10003-0Heat Stabilized
Black-40 to 105°C / -40 to 221°F
Part #Military SpecificationsPanduit Cross ReferenceThomas and Betts Cross Reference
10001-0MS-3367-1-9PLT2S-MTY25M
10003-0MS-3367-1-0PLT2S-M30TYH25M
