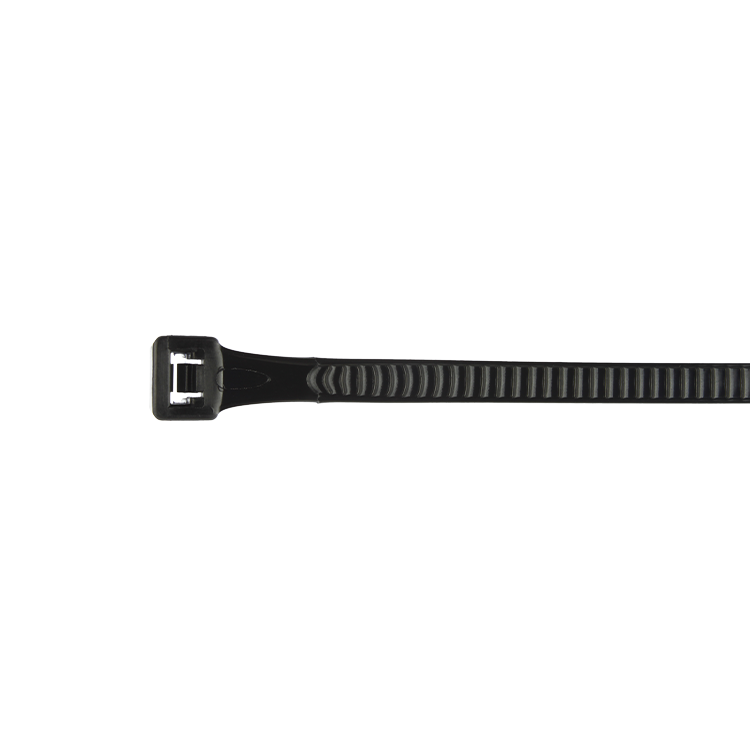

15" Super Bar-Lok® Ties

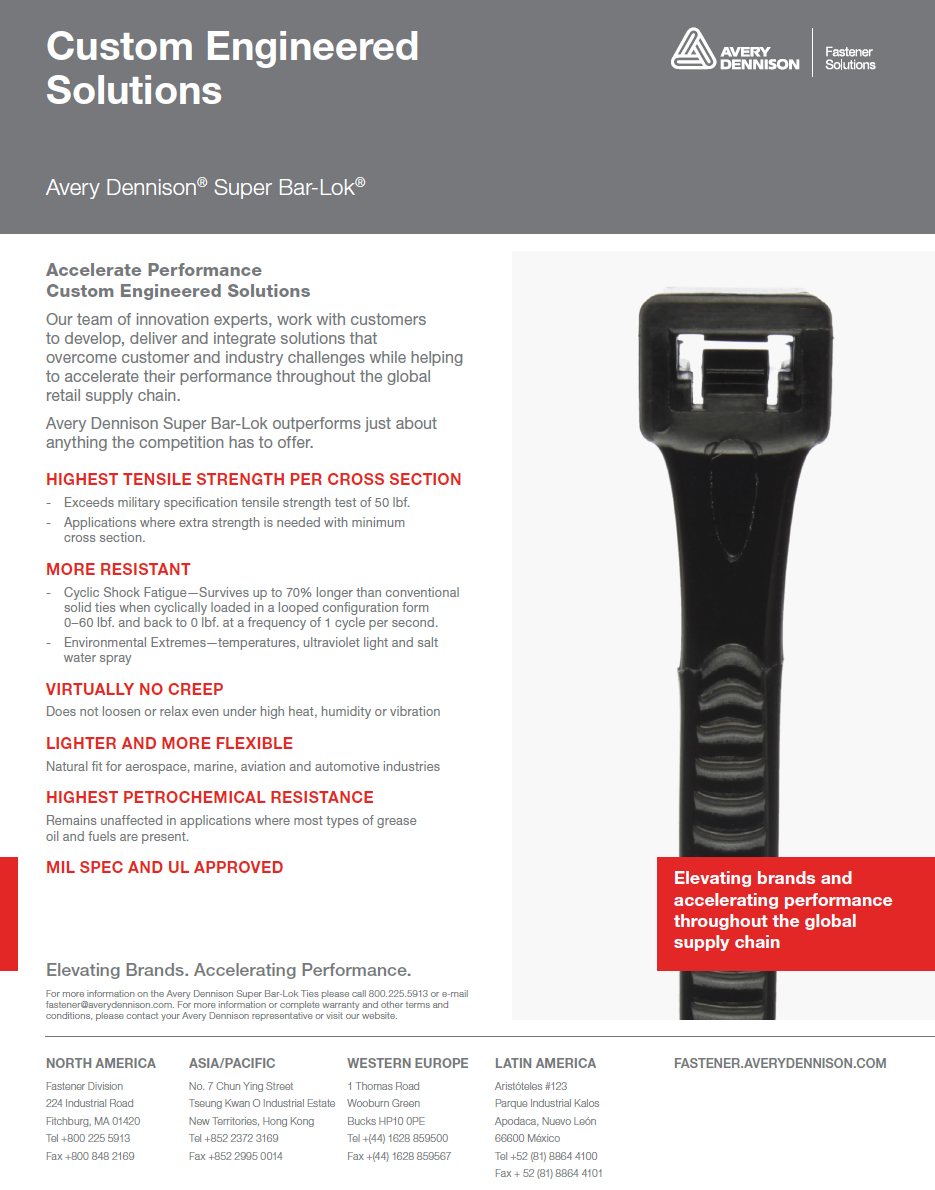

Our Super Bar-Lok Ties™ fetaure an overall strap length of 15" (381mm) and exceed military specification tensile strength test of 50 lbf, making these ties ideal in applications where extra strength is needed with minimum cross section. These ties also survive up to 70% longer than conventional solid ties when cyclically loaded in a looped configuration from 0 to 60 lbs, and back to 0 lbs at a frequency of 1 cycle per second. Super Bar-Lok Ties™ do not loosen or relax even under high heat, humidity, or vibration and remains unaffected in applications where grease, oil, and fuels are present. Their light and flexible design is a natural fit for aerospace, marine, aviation, and automotive industries. They are also resistant to extreme temperatures, ultraviolet light, and saltwater spray.

Super Bar-Lok Ties™ are Mil Spec and UL approved. Also available with an overall strap length length of  7.5" (190.5 mm)

Attribute
Specifications
Bundle Diameter0.06" - 4.00" (1.6mm - 101.6mm)
Width0.195" (5mm)
Thickness0.03" (0.8mm)
Minimum Tensile Loop Strength50 lbf. (222 N)

Strap Length15" (381mm)

Part #Environmental RequirementsColorOperating TemperatureQuantity Per Bag
10006-0General Purpose
Natural-40 to 85°C / -40 to 185°F
100
10008-0Heat Stabilized
Black-40 to 105°C / -40 to 221°F
100
10344-0General Purpose
Natural-40 to 85°C / -40 to 185°F
500
10345-0Heat Stabilized
Black-40 to 105°C / -40 to 221°F
500
Part #Military SpecificationsPanduit Cross ReferenceThomas and Betts Cross Reference
10006-0
10008-0MS-3367-2-0PLT4S-C30
10344-0MS-3367-2-9PLT4S-CTY528M
10345-0MS-3367-2-0PTL4S-M30TYH28M
