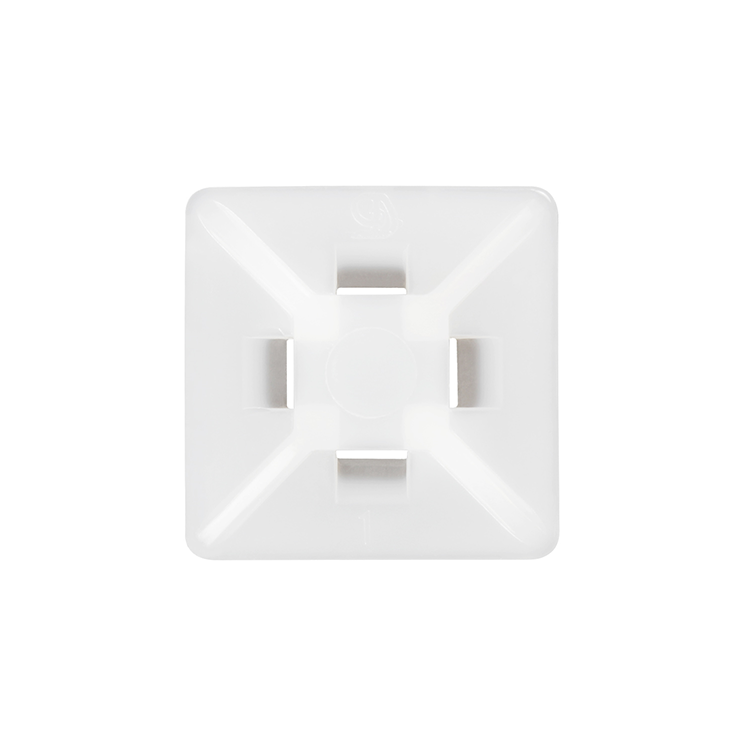

Cable Tie Adhesive Mount

This is a cable tie adhesive mount. Adhesive mounts are able to conform to minor surface irregularities and are available in both rubber and acrylic. Rubber is quick setting and has a modern strength, and acrylic takes longer to set and is stronger. Adhesive mounts have four-way positioning, making it so cable ties can easily slide into the mounts from any 4 sides, which speeds up the assembly process.

Attribute
Specifications
Width0.835" (21.2mm)
ColorNatural
Quantity Per Bag100
Quantity Per Case*5M

*M = 1000

Part #MaterialCompatible TiesLengthThickness
08461-0Acrylic miniature & intermediate0.84" (21.2mm)
0.19" (4.8mm)
08462-0Rubber basedminiature & intermediate1.09" (27.7mm)
0.25" (6.4mm)
10029-0Acrylic intermediate & standard0.84" (21.2mm)
0.19" (4.8mm)
10030-0Rubber based intermediate & standard1.09" (27.7mm)
0.25" (6.4mm)
Part #Panduit Cross ReferenceThomas and Betts Cross Reference
08461-0ABMM-AT-CTC344A
08462-0ABM2S-AT-CTC345A
10029-0ABMM-A-CTC344A
10030-0ABM2S-A-CTC345A
