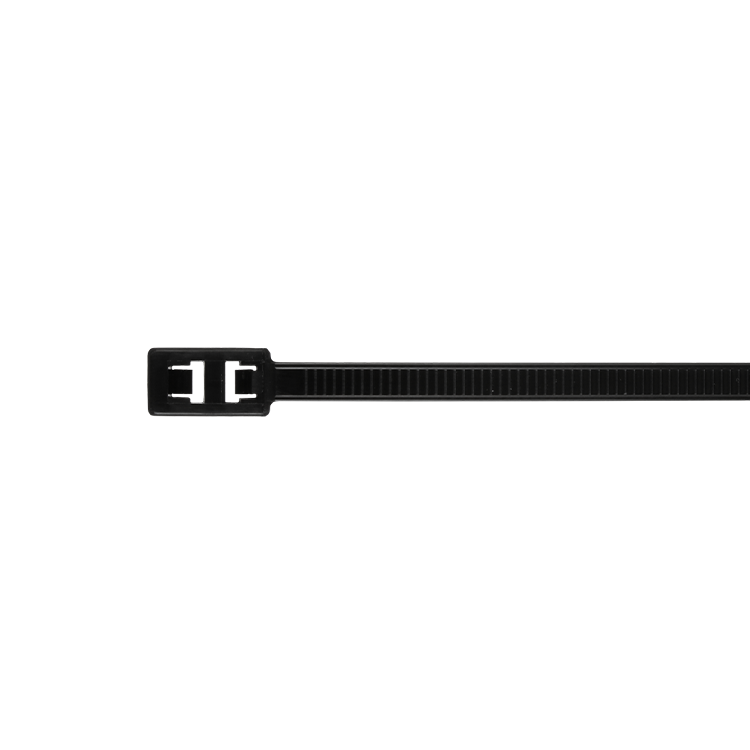

7.5" Double Headed Cable Ties

Our Double Headed Cable Ties feature an overall strap length of 7.5" (190.5mm). They allow you to harness two bundles simultaneously or provide a means to position and anchor a single harness.

Also available with an overall strap length of 11"(279.4mm).

Attribute
Specifications
Bundle Diameter0.06"- 1.75" (1.6mm - 44.5 mm)
Width.177" (4.5mm)
Thickness.055" / 1.4mm
Minimum Tensile Loop Strength50 lbf. (222 N)
Strap Length7.5" / 190.5mm
Quantity Per Case*5M

*M = 1000

Part #Environmental RequirementsColorOperating TemperatureQuantity Per Bag*
10424-0General Purpose
Natural-40 to 85°C / -40 to 185°F
1M
10425-0Heat Stabilized
Black
-40 to 105°C / -40 to 221°F
1M
10426-0Weather/UV Resistant
Black
-40 to 80°C / -40 to 176°F
1M
10428-0Heat Stabilized
Black
-40 to 105°C / -40 to 221°F
100
Part #Panduit Cross Reference
10424-0PLB2S-M
10425-0PLB2S-M30
10426-0PLB2S-M30
10428-0PLB2S-C30
