20087-0

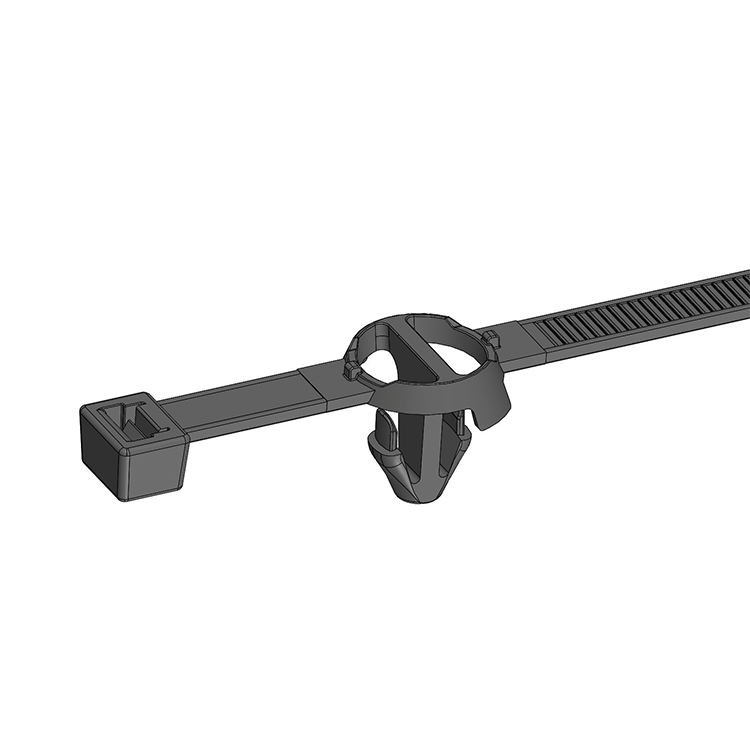

90 DEG.ARROW TIE,BHS

Building on our oval/slot arrow family of products, we offer a variety of offset arrows.These allow users to guide harnesses, tubes and hoses away from the mating hole when there is interference from other components or harnesses.

Attribute
Specifications
ApplicationPunched Hole
Fastener TypeArrow
Mating FeatureArrow Hole
Mount SizeØ 6.35 - 6.85 mm
Bundle Diameter0.25 - 1.75" (6.3 - 44.5 mm)
Maximum Panel Thickness3.5 - 5.5 mm
Operating Temperature-40 to 125°C / -40 to 257°F
ResinPA66 IMHS
ColorBlack
Insertion Force (lbf)

Max.    - 10

Typical - 5

Retention Force (lbf)

Min.     - 50

Typical - 68

Min. Loop Tensile Strength
50 lbf. (222 N)
