OFFSET BLK HS

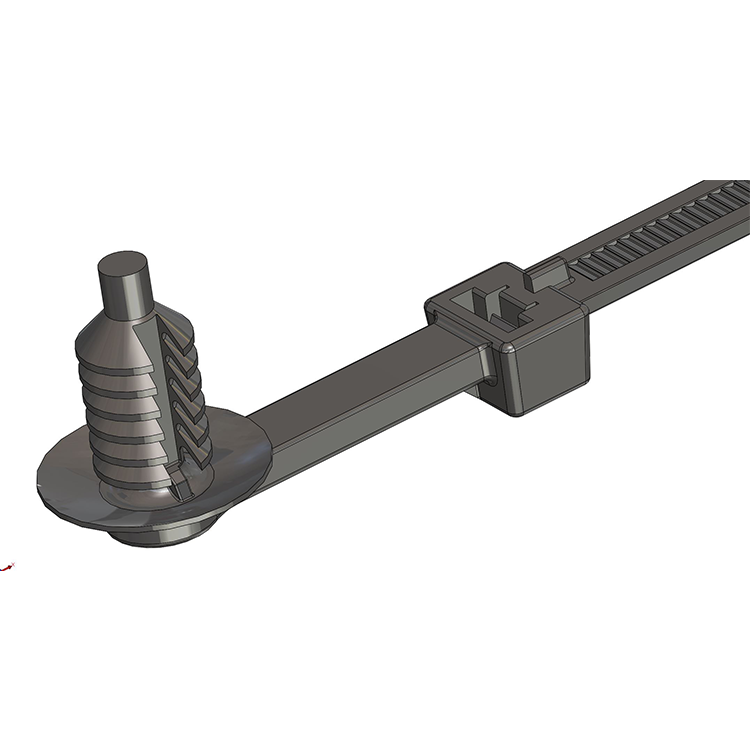

Building on our straight fir tree family of products, we offer a variety of offset fir trees. These allow users to guide harnesses, tubes and hoses away from the mating hole when there is interference from other components or harnesses. Products come in 15mm and 25mm offsets for hole sizes ranging from M6 threaded holes to Ø9.5mm round holes. Each product is available in both standard and reverse pawl versions.


Attribute
Specifications
ApplicationPunched Hole
Fastener TypeOffset Fir Tree
Mating FeatureRound / Hex Hole
Mount SizeØ 6.35 - 6.85 mm
Bundle Diameter0.06 - 1.75" (1.6 - 44.5 mm)
Maximum Panel Thickness≤ 7.0 mm
Operating Temperature-40 to 125°C / -40 to 257°F
ResinPA66 IMHS
ColorBlack
Insertion Force (lbf)

Max.   - 15

Typical - 12

Retention Force (lbf)

Min.     - 50

Typical - 70

Min. Loop Tensile Strength50 lbf. (222 N)
