10036-0

15" STANDARD, NAT

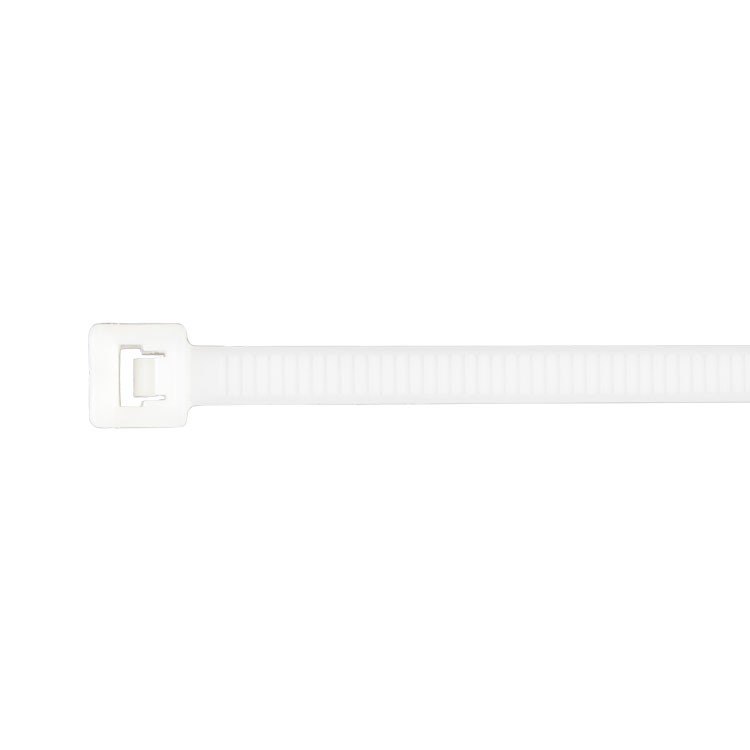

This Standard Cable Tie features an overall strap length of 15"(381mm). It is designed for use in heavier applications, having a minimum tensile loop strength of 50 lbf. (222 N).

Attribute
Specifications
Bundle Diameter0.06" -4.00" (1.6mm - 101.6mm)
Environmental RequirementsGeneral Purpose
Width0.177" (4.5mm)
Thickness0.053" (1.3mm)
Minimum Tensile Loop Strength50 lbf. (222 N)
Strap Length15.0" (381mm)
ColorNatural
Operating Temperature -40 to 85°C / -40 to 185°F
Quantity Per Bag500
Quantity Per Case*5M
Military SpecificationMS-3367-2-9
Panduit Cross ReferencePTL4S-M
Thomas and Betts Cross ReferenceTY28M

*M = 1000
