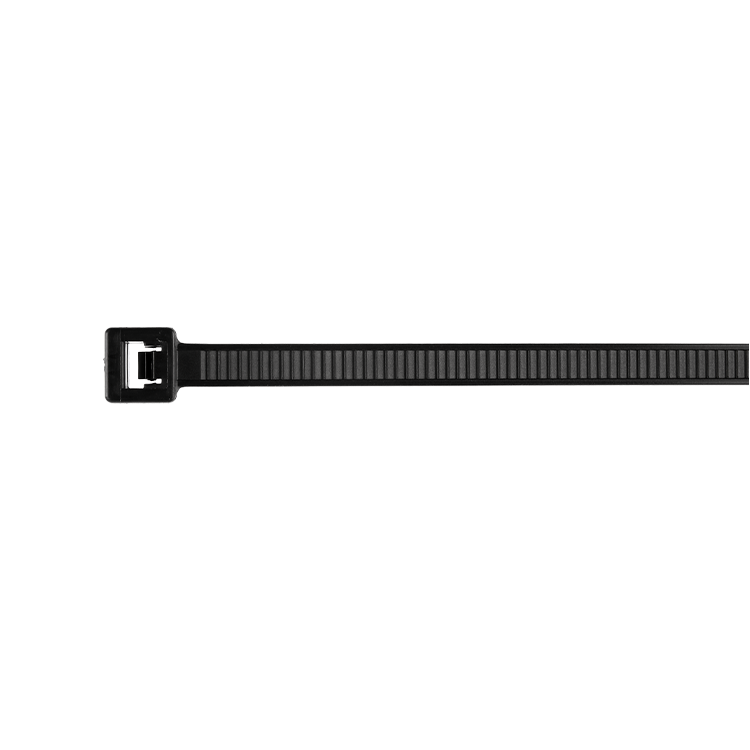

08402-0

7.5" STANDARD, BLK HS

This Standard Cable Tie features an overall strap length of 7.5"(190.5mm). It is designed for use in heavier applications, having a minimum tensile loop strength of 50 lbf. (222 N). It is also heat stabilized which is perfect for use in high temperature applications.

Attribute
Specifications
Bundle Diameter0.06"- 1.75" (1.6mm - 44.5 mm)
Environmental RequirementsHeat Stabilized
Width.177" (4.5mm)
Thickness.050" / 1.2mm
Minimum Tensile Loop Strength50 lbf. (222 N)
Strap Length7.5" / 190.5mm
ColorBlack
Operating Temperature -40 to 105°C / -40 to 221°F
Quantity Per Bag*1M
Quantity Per Case*5M
Military SpecificationMS-3367-1-0
Panduit Cross ReferencePLT2S-M30
Thomas and Betts Cross ReferenceTYH25M

*M = 1000
