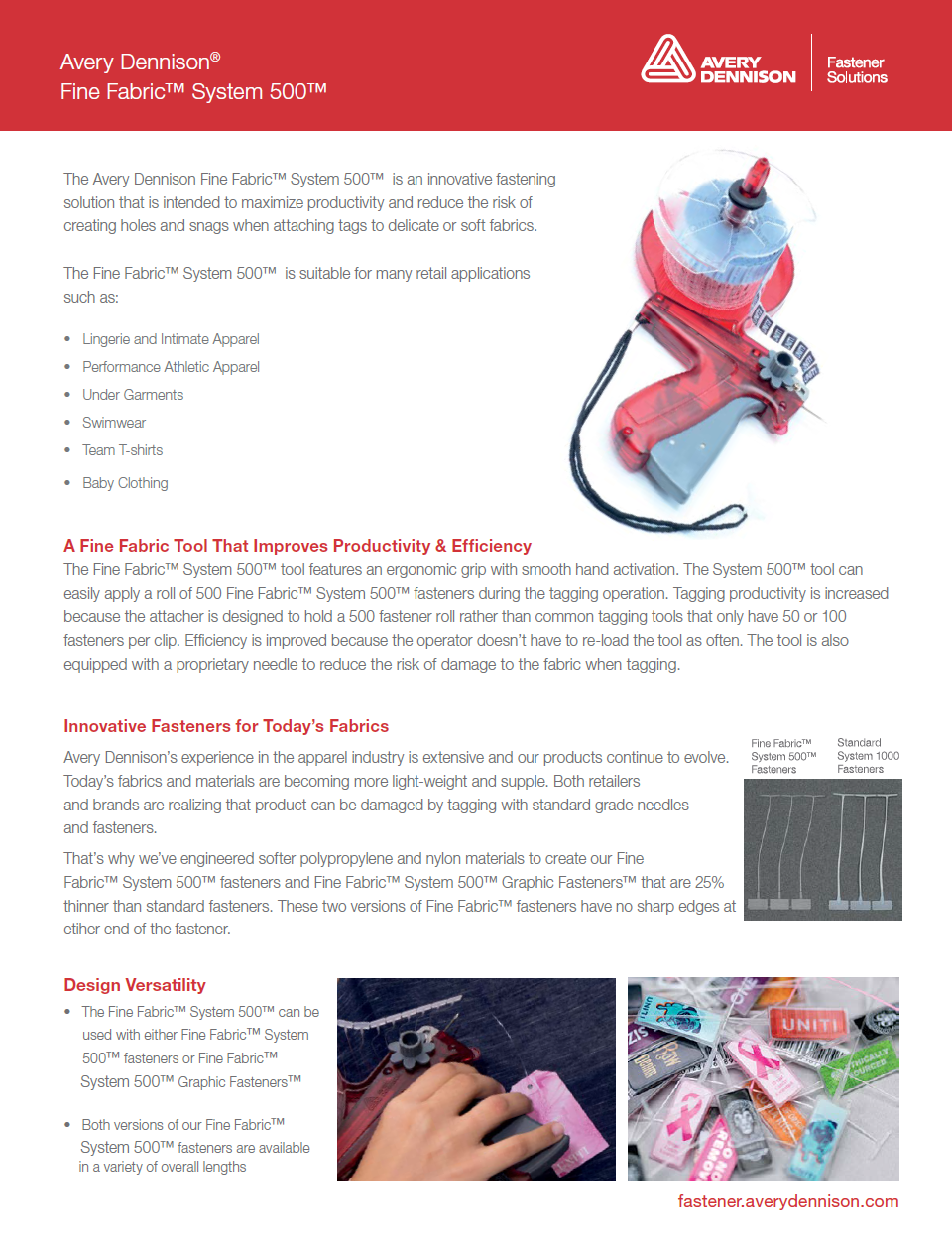

Fine Fabric™ System 500™ Fasteners

Fine Fabric™ System 500™ fasteners come in reels of 500 fasteners --that's more than most standard attaching tools, reducing time spent reloading smaller clips of fasteners. These fasteners are 25% thinner than our standard fasteners and feature no sharp edges at either end of the fastener. They are also available as a custom graphic fastener. These paddle fasteners prevent ticket switching and have no waste strip to discard when the operator is finished.

Attribute
Specifications
StylePaddle
Loading TypeReel
Per Reel*500
Package Quantity*5M
Case Quantity*50M

*M = 1000

Product #MaterialNominal Filament LengthMinimum Applied StrengthColor
17041-0Recycled (RPET)1.63” (41mm)
2.5 lbf (1.13 kgf)
Natural
17042-0Recycled (RPET)
1.63” (41mm)
2.5 lbf (1.13 kgf)
Black
17043-0Recycled (RPET)
1.63” (41mm)
2.5 lbf (1.13 kgf)
White
16024-0Polypropylene0.75” (19mm) 2.0 lbf (0.91 kgf) Natural
16023-0Polypropylene1.77” (45mm) 2.0 lbf (0.91 kgf) Natural
16022-0Polypropylene2.76” (70mm) 2.0 lbf (0.91 kgf) Natural
16026-0Nylon0.75” (20mm) 3.5 lbf (1.59 kgf) Natural
16025-0Nylon1.77” (45mm) 3.5 lbf (1.59 kgf) Natural

GF13NPolypropylene2.15” (54.6mm) 2.0 lbf (0.91 kgf) Natural
GF13WPolypropylene2.15” (54.6mm) 2.0 lbf (0.91 kgf) White
GF13BPolypropylene2.15” (54.6mm) 2.0 lbf (0.91 kgf) Black
GF13SPolypropylene2.15” (54.6mm)2.0 lbf (0.91 kgf) Special

GF125NPolypropylene1.7” (43mm) 2.0 lbf (0.91 kgf) Natural
GF125WPolypropylene1.7” (43mm) 2.0 lbf (0.91 kgf) White
GF125BPolypropylene1.7” (43mm) 2.0 lbf (0.91 kgf) Black
GF125SPolypropylene1.7” (43mm)2.0 lbf (0.91 kgf) Special

GF12NPolypropylene1.18” (30mm) 2.0 lbf (0.91 kgf) Natural
GF12WPolypropylene1.18” (30mm) 2.0 lbf (0.91 kgf) White
GF12BPolypropylene1.18” (30mm) 2.0 lbf (0.91 kgf) Black
GF12SPolypropylene1.18” (30mm)2.0 lbf (0.91 kgf)Special

Compatible Tools Include:

Fine Fabric System 500 Handheld (16010-0)

Fine Fabric System 500 Pneumatic (SPU8M)
