System 1000® Fasteners

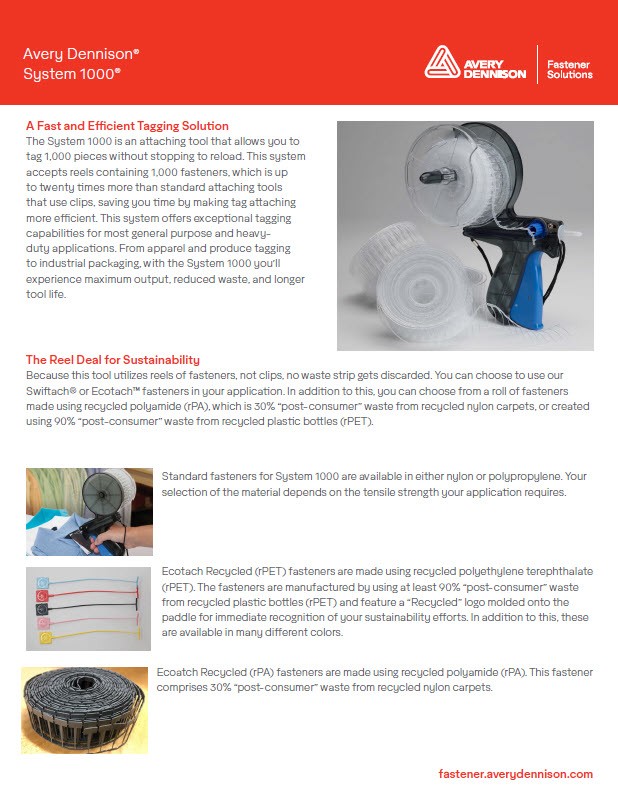

System 1000 Information

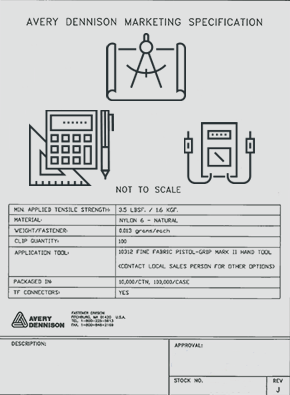

Marketing Specifications

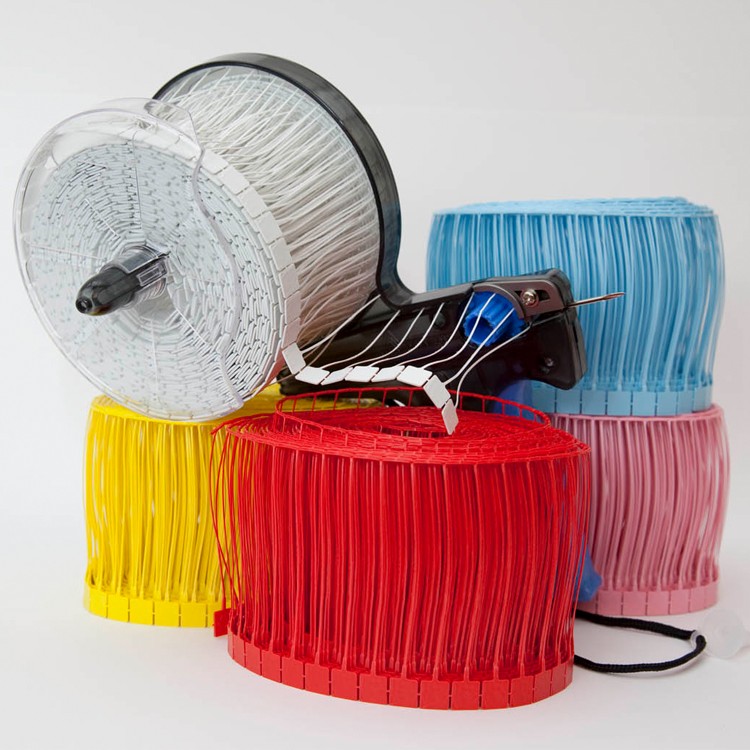

System 1000® Fasteners come in reels of 1,000 fasteners --that's up to twenty times more than standard hand attaching tools, which typically accommodate clips containing 50 or 100 fasteners. This system is an efficient tagging solution because the time spent reloading smaller clips of fasteners is eliminated. These fasteners feature a large paddle to prevent ticket switching and they have no waste strip to discard when the operator is finished.

Attribute	Specifications
Style	Paddle
Loading Type	Reel
Per Reel*	1M or 834
Package Quantity*	5M
Case Quantity*	50M

*M = 1000

Material	Style	Class	Part #	Color	Nominal Filament Length	Minimum Tensile Strength	Per Reel	Pkg. Qty	Case Qty
Polypropylene	Paddle	Standard	10332-0	Natural	.43" (11mm)	4.5 lbf (2 Kgf)	1,000	5,000	50,000
Polypropylene	Paddle	Standard	10316-0	Blue	.87" (22mm)	4.5 lbf (2 Kgf)	1,000	5,000	50,000
Polypropylene	Paddle	Standard	10317-0	Green	.87" (22mm)	4.5 lbf (2 Kgf)	1,000	5,000	50,000
Polypropylene	Paddle	Standard	08284-0	Natural	.87" (22mm)	4.5 lbf (2 Kgf)	1,000	5,000	50,000
Polypropylene	Paddle	Standard	10315-0	Red	.87" (22mm)	4.5 lbf (2 Kgf)	1,000	5,000	50,000
Polypropylene	Paddle	Standard	10318-0	Yellow	.87" (22mm)	4.5 lbf (2 Kgf)	1,000	5,000	50,000
Polypropylene	Paddle	Standard	10311-0	Natural	1.25" (32mm)	4.5 lbf (2 Kgf)	1,000	5,000	50,000
Polypropylene	Paddle	Standard	10334-0	Natural	1.5" (38mm)	4.5 lbf (2 Kgf)	1,000	5,000	50,000
Polypropylene	Paddle	Standard	08285-0	Natural	2" (52mm)	4.5 lbf (2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	11270-0	Natural	0.43" (11mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	10699-0	Natural	0.59" (15mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	11271-0	Natural	0.75" (19mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	10698-0	Natural	0.86" (22mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	10418-0	Natural	1.0" (26mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	11272-0	Natural	1.25" (32mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	10415-0	Natural	1.5" (38mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	11273-0	Natural	1.75" (44mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	11005-0	Natural	2.0" (52mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	11260-0	Natural	2.25" (57mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	11261-0	Natural	2.55" (65mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	11262-0	Natural	2.75" (70mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
Nylon	Paddle	Standard	11263-0	Natural	3.0" (76mm)	7 lbf (3.2 Kgf)	1,000	5,000	50,000
rPET 95%PCW	Paddle	Standard	17016-0	Black/Black	1.6” (41mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Standard	17017-0	White/White	1.6” (41mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Standard	17001-0	White/White	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Standard	17002-0	Yellow/107C	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Standard	17003-0	Orange/172C	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Standard	17004-0	Pink/210C	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Standard	17005-0	Red/186C	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Standard	17006-0	LT Green/346C	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Standard	17007-0	Green/347C	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Standard	17008-0	LT Blue/291C	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Standard	17009-0	DK Blue/286C	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Standard	17010-0	Brown/4655C	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Fine Fabric	17011-0	Gray/429C	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Fine Fabric	17012-0	Black/Black	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPET 95%PCW	Paddle	Fine Fabric	17013-0	Natural	2.6” (65mm)	4.0 lbf (1.8 Kgf)	834	5,000	50,000
rPA 30%PCW	Paddle	Standard	17180-0	Gray	0.43" (11mm)	7 lbf / 3.2 Kgf	1000	5000	50000
rPA 30%PCW	Paddle	Standard	17181-0	Gray	0.50" (13mm)	7 lbf / 3.2 Kgf	1000	5000	50000
rPA 30%PCW	Paddle	Standard	17182-0	Gray	0.76" (19mm)	7 lbf / 3.2 Kgf	1000	5000	50000
rPA 30%PCW	Paddle	Standard	17183-0	Gray	1.02" (26mm)	7 lbf / 3.2 Kgf	1000	5000	50000
rPA 30%PCW	Paddle	Standard	17184-0	Gray	1.25" (32mm)	7 lbf / 3.2 Kgf	1000	5000	50000
rPA 30%PCW	Paddle	Standard	17185-0	Gray	1.65" (42mm)	7 lbf / 3.2 Kgf	1000	5000	50000
rPA 30%PCW	Paddle	Standard	17186-0	Gray	1.73" (44mm)	7 lbf / 3.2 Kgf	1000	5000	50000
rPA 30%PCW	Paddle	Standard	17187-0	Gray	2.02" (51mm)	7 lbf / 3.2 Kgf	1000	5000	50000

Compatible Tools Include:

System 1000® Industrial Pneumatic Tool (SPU5P)

System 1000® Hand Tool (10000-4)

Industrial System 1000® Module (SPU5M)
