11" Releasable Ties

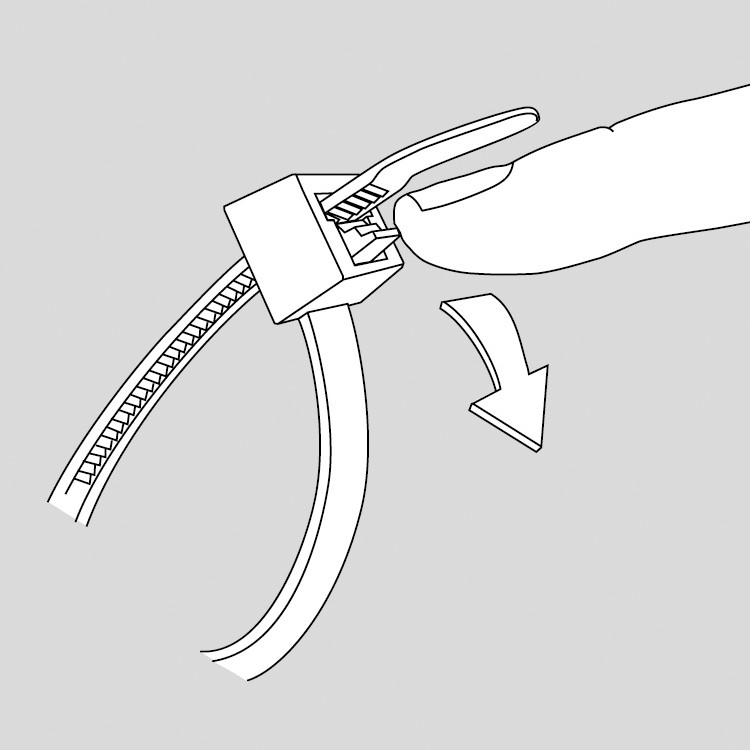

Our Releasable Cable Ties feature an overall strap length of 11" (279.4mm) and are used for prototype installations or for equipment requiring requent modifications or service. Simply press the tab to remove the tie. Releasable Cable Ties are easy to use and can be used again and again.

Also available with an overall strap length of 7.5"(190.5mm).

Attribute
Specifications
Bundle Diameter0.06" - 3.00" (1.6mm - 76.2mm)
Width0.177" (4.5mm)
Thickness0.05" (1.2mm)
Minimum Tensile Loop Strength50 lbf. (222 N)
Strap Length11" (279.4mm)

*M = 1000

Part #Environmental RequirementsColorOperating TemperatureQuantity Per Bag*
10367-0General Purpose
Natural-40 to 85°C / -40 to 185°F
1M
10368-0Heat Stabilized
Black
-40 to 105°C / -40 to 221°F
1M
10369-0Weather/UV Resistant
Black
-40 to 80°C / -40 to 176°F
1M
10370-0General Purpose
Natural
-40 to 85°C / -40 to 185°F
100
Part #Panduit Cross ReferenceThomas and Betts Cross Reference
10367-0PRT3S-MTRY508
10368-0PRT3S-M30
10369-0PRT3S-MO
10370-0PRT3S-C
