20085-0

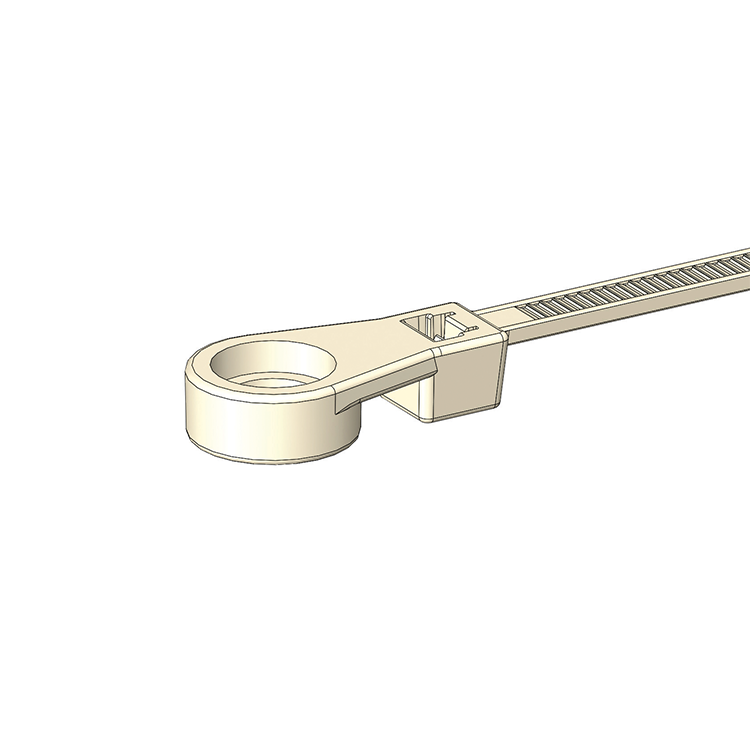

7.5"1/4"MOUNT,NAT.

Our Screw Mount Ties feature an overall strap length of 7.5" (190.5mm) and are ideal for use when precision matters. They keep applications secure and in their exact position. They are often used when a part is pre-mounted to a surface prior to the final assembly.

Attribute
Specifications
ApplicationScrew Mount
Mating FeatureScrew Mount
Mount Size0.25" (6.35mm) Screw
Bundle Diameter0.25 - 1.75" (6.3 - 44.5 mm)
Minimum Stud Height≥ 5.0mm
Operating Temperature-40 to 125°C / -40 to 257°F
ResinPA66 IMHS
ColorNatural
Min. Loop Tensile Strength
50 lbf. (222 N)
