20060-0

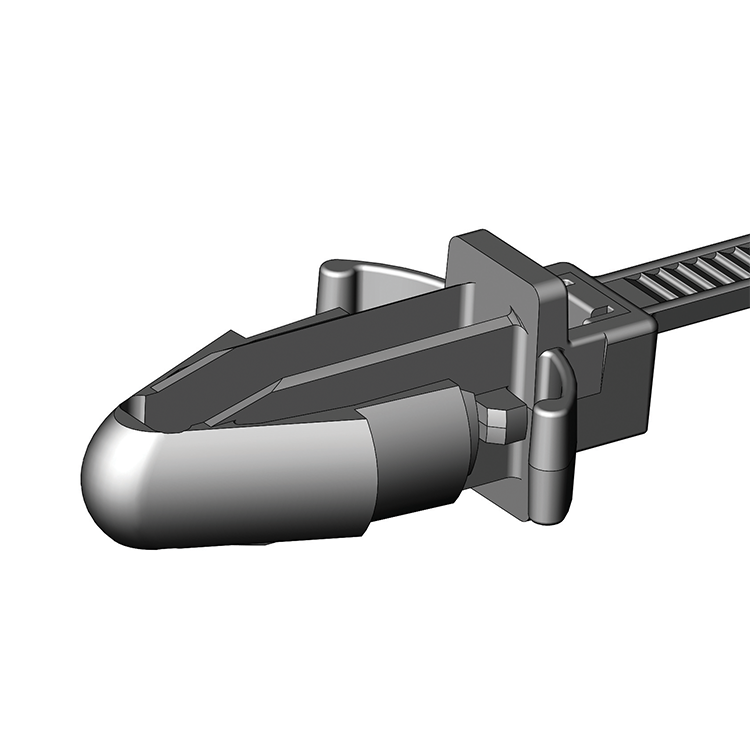

9.5mm ARROW PM 4"L

If you are looking for positive engagement feedback when installing electrical or fluid systems, Avery Dennison offers a family of arrow style fasteners.

Attribute
Specifications
ApplicationPunched Hole
Fastener TypeArrow
Mating FeatureArrow Hole
Mount SizeØ 9.25 - 10.0 mm
Bundle Diameter0.25 - 0.75" (6.4 - 19.1 mm)
Maximum Panel Thickness≤ 10.0 mm
Operating Temperature-40 to 125°C / -40 to 257°F
ResinPA66 IMHS
ColorBlack
Insertion Force (lbf)

Max.    - 10

Typical - 7

Retention Force (lbf)

Min.     - 40

Typical - 30

Min. Loop Tensile Strength
25 lbf. (111 N)
