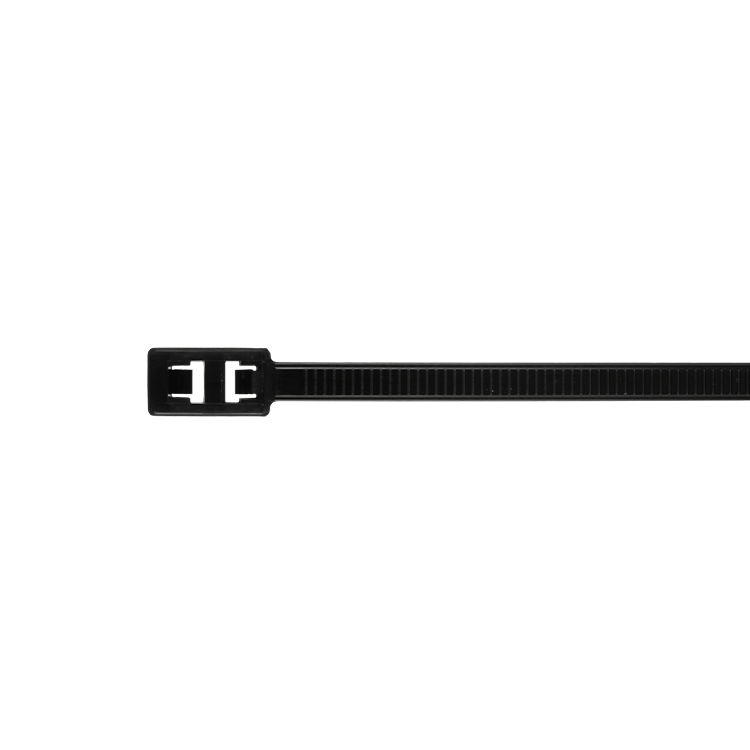

10431-0

11" DOUBLE HEADED, BLK HS

Our Double Headed Cable Ties feature an overall strap length of 11" (279.4mm). They allow you to harness two bundles simultaneously or provide a means to position and anchor a single harness. This heat stabilized option is perfect for use in high temperature applications.

Attribute
Specifications
Bundle Diameter0.06" -3.00" (1.6mm - 76.2mm)
Environmental RequirementsHeat Stabilized
Width0.177" (4.5mm)
Thickness0.055" (1.4mm)
Minimum Tensile Loop Strength50 lbs. (222 N)
Strap Length11.0" (279.4mm)
ColorBlack
Operating Temperature -40 to 105°C / -40 to 221°F
Quantity Per Bag*1M
Quantity Per Case*5M
Panduit Cross ReferencePLB3S-M30

*M = 1000
