10003-0

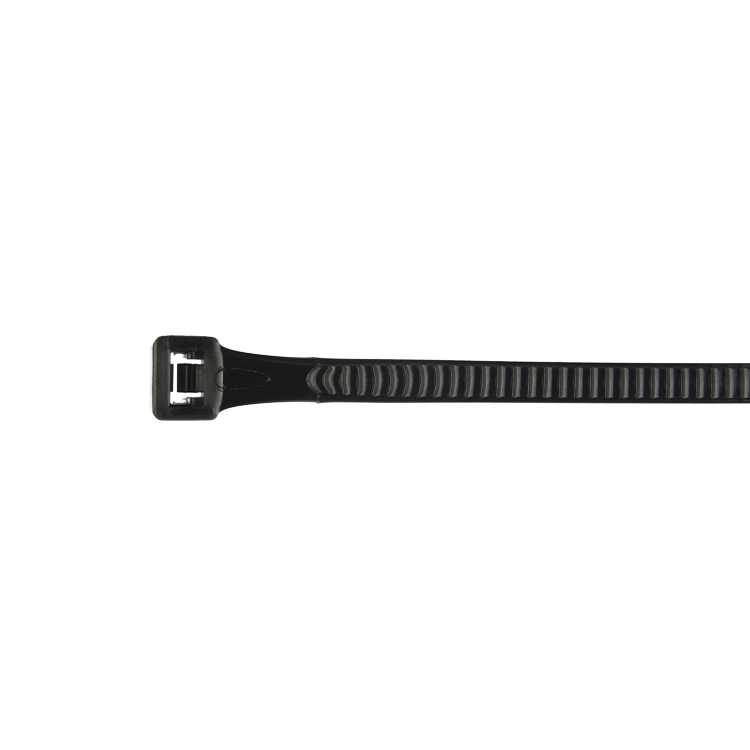

7.5" SUPER BAR-LOK, BLK HS

Avery Dennison Super Bar-Lok Ties® feature an overall strap length of 7.5" (190.5mm) and exceed military specification tensile strength test of 50 lbs, making these ties ideal in applications where extra strength is needed with minimum cross section.

These ties also survive up to 70% longer than conventional solid ties when cyclically loaded in a looped configuration form 0 to 60 lbs, and back to 0 lbs at a frequency of 1 cycle per second. Super Bar-Lok Ties do not loosen or relax even under high heat, humidity, or vibration and remains unaffected in applications where grease, oil, and fuels are present. Their light and flexible design is a natural fit for aerospace, marine, aviation, and automotive industries. They are also resistant to extreme temperatures, ultraviolet light, and saltwater spray. Super Bar-Lok Ties are Mil Spec and UL approved.

Attribute
Specifications
Bundle Diameter0.06"- 1.75" (1.6mm - 44.5 mm)
Environmental RequirementsHeat Stabilized
Width0.195" (5mm)
Thickness0.03" (0.8mm)
Minimum Tensile Loop Strength50 lbs. (222 N)
Strap Length7.5" (190.5mm)
ColorBlack
Operating Temperature -40 to 105°C / -40 to 221°F
Quantity Per Bag*1M
Quantity Per Case*5M
Military SpecificationMS-3367-1-0
Panduit Cross ReferencePLT2S-M30
Thomas and Betts Cross ReferenceTYH25M

*M = 1000
