08472-0

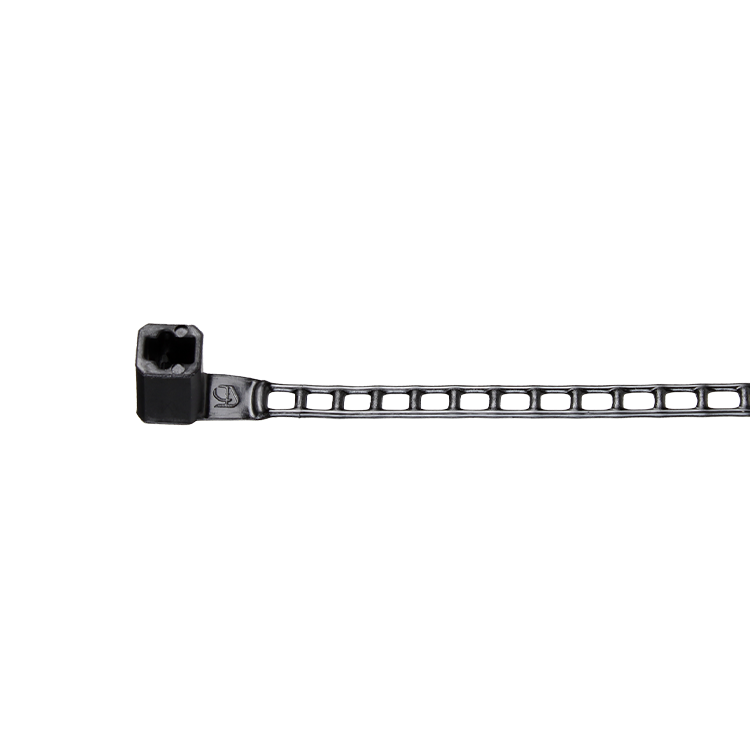

7" LADDER, BLK HS

When compared to its standard equivalent, the Ladder Tie is both friendly to our environment and cost effective.

Ladder Ties use 60% less material than solid standard ties and weighs as much as 60% less. These lightweight ties will save on shipping costs, with a case of Ladder Ties being as much as 17% lighter and a bag being as much as 5% lighter than standard ties. They are even manufactured with 40% of previously used nylon 6/6 material. None of this comprimises the performance of the Ladder tie either, with it consistantly performing higher than the 40lb/18.14Kg tensile strength specification.

The Ladder Tie has been accepted into the automotive, electronics, and industrial industries.

Attribute
Specifications
Bundle Diameter0.06"- 1.75" (1.6mm - 44.5 mm)
Environmental RequirementsWeather/UV Resistant
Width.140" (3.6mm)
Thickness.040" / 1.0mm
Minimum Tensile Loop Strength40 lbf. (178 N)
Strap Length7.0" / 177.8mm
ColorBlack
Operating Temperature -40 to 105°C / -40 to 221°F
Quantity Per Bag*1M
Quantity Per Case*5M
Panduit Cross ReferencePLT2I-M30/PLT2S-M30
Thomas and Betts Cross ReferenceTYH25M

*M = 1000
